Product Overview

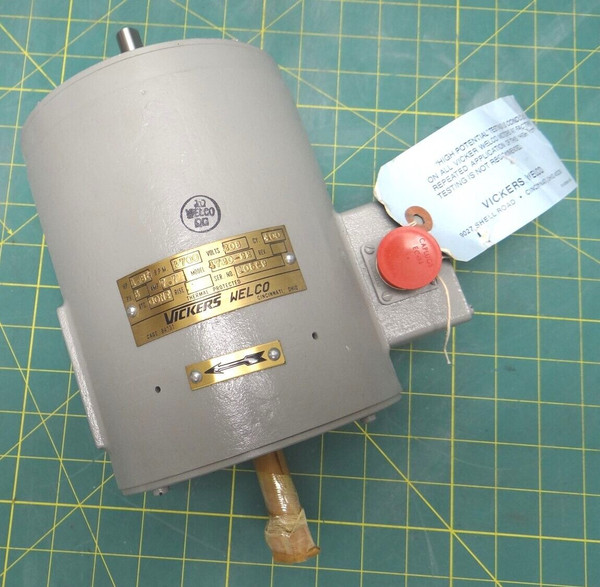

Alternating Current Motor Vickers Welco
Model: 4720-22
NSN: 6105-00-938-0885
Technical Characteristics:
OVERALL HEIGHT: 5.625 INCHES
OVERALL LENGTH: 11.125 INCHES
OVERALL WIDTH: 5.438 INCHES
KEYWAY WIDTH: 0.1872 INCHES NOMINAL IDENTICAL ENDS
KEYWAY DEPTH: 0.0946 INCHES NOMINAL IDENTICAL ENDS
SHAFT DIAMETER: 0.5000 INCHES NOMINAL IDENTICAL ENDS
FLATTED PORTION LENGTH: 1.1250 INCHES NOMINAL IDENTICAL ENDS
KEYWAY LENGTH: 1.3750 INCHES NOMINAL IDENTICAL ENDS
FLAT DEPTH: 0.0460 INCHES NOMINAL IDENTICAL ENDS
SHAFT ROTATION DIRECTION: CLOCKWISE IDENTICAL ENDS
DUTY CYCLE: CONTINUOUS
INCLOSURE FEATURE: TOTALLY INCLOSED
WINDING TYPE: INDUCTION-SINGLE VALUE CAPACITOR SPLIT PHASE
MOUNTING METHOD: FIXED BASE
MOUNTING FACILITY TYPE AND QUANTITY: 4 THREADED HOLE
COOLING METHOD: NONVENTILATED
INCLOSURE SPECIFICATION: COMMERCIAL
FEATURES PROVIDED: THERMAL PROTECTIVE DEVICE AND HORIZONTAL MOUNTING POSITION AND VERTICAL MOUNTING POSITION
POWER RATING: 1.8300 HORSEPOWER OUTPUT
LENGTH OF SHAFT FROM HOUSING: 2.000 INCHES IDENTICAL ENDS
SHAFT CENTER TO MOUNTING SURFACE DISTANCE: 2.812 INCHES IDENTICAL ENDS
NOMINAL CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH: 4.125 INCHES
TEMP RATING: -65.0 OPERATING DEG FAHRENHEIT AND 150.0 OPERATING DEG FAHRENHEIT
ROTOR SPEED RATING IN RPM: 3700.0 SINGLE FULL LOAD
NOMINAL CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH: 3.500 INCHES
CONNECTION TYPE AND VOLTAGE RATING IN VOLTS: 208.0 LINE TO NEUTRAL LOW INPUT OR 416.0 LINE TO NEUTRAL HIGH
SHAFT END CHARACTERISTIC: A5 FIRST STYLE SINGLE END AND A9 SECOND STYLE
PHASE: THREE INPUT
SPECIAL FEATURES: MULTIPLE SHAFTS SAME DIMENSIONS
FREQUENCY IN HERTZ: 400.0 INPUT
PROPRIETARY CHARACTERISTICS: PACS
TERMINAL TYPE AND QUANTITY: 1 CONNECTOR, PLUG
New surplus, see photos for details.
