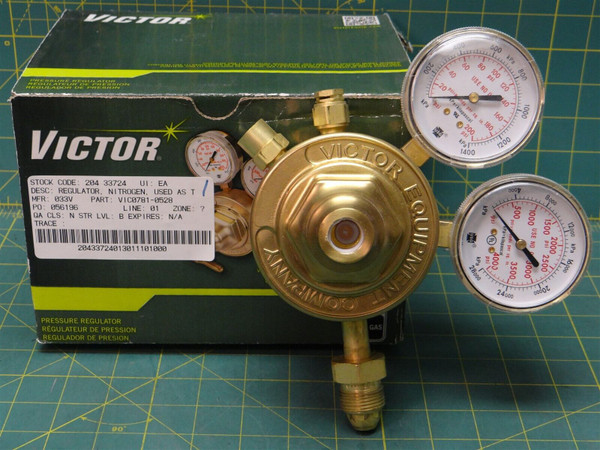

Victor 0781-0528 Brass 3-Gas Heavy-Duty Single Stage Regulator 5 - 125 psig

Victor 0781-0528 Brass 3-Gas Heavy-Duty Single Stage Regulator 5 - 125 psig

Recommended for applications where slight delivery pressure increases (due to decreasing cylinder pressures) would not affect the performance characteristics of the work or test results. The SR450 regulators are designed for heavy duty applications and for larger cylinders

Features

• Forged brass body and housing cap
• 2-1/2 Inch gauge brass
• Stem type seat mechanism
• 3-1/4 Inch diaphragm stainless steel
• Delrin cap bushing for smooth adjustments
• Sintered inlet filter
• Regulators will deliver at least the stated upper range and in some cases may exceed the stated upper range
• External self reseating relief valve on HP models not designed to protect downstream apparatus

Dimensions: 7-1/4 Inch Length x 5.13 Inch Width x 7 Inch Height
Finish/Color: Brass
Flow Coefficient (Cv): 0.27
Gas Type: Air, Oxygen, Inert Gas
Gauge Range Inlet: 4000 psig,
Outlet: 200 psig
Inlet Connection: CGA 580
Inlet Pressure: 3000 psig
Material: Forged Brass
Outlet Connection: 5/8-18 RH Female
Outlet Pressure: 5 - 125 psig
Type: Heavy-Duty Single Stage




New surplus. Obtained from a facility that required individual unit testing. Item may show signs of mounting/ testing but is in otherwise new condition. See photos for details.
